Fan-Jet® & Flo-Jet® – Flat Spray Nozzles

• Offered in spray angles from 0° to 160°
• Flow rates from 0.20 gallons per minute (GPM) up to 50 GPM (.75 liters/minute to 190 LPM)
• Pressures from 5 PSI to 1,000 PSI (.35 BAR to 70 BAR)
• Constructed in various materials including steel, 303 & 316 stainless steel, brass and CPVC
• Available in pipe thread sizes from 1/8 inch to 1” NPT (other thread sizes and types available upon request)

General purpose flat sprays:

• the single piece nozzle (Type V), has no cores or internal members to clog
• the four piece removable tip nozzle (Type FA), has no cores or internal members to clog & adjustable orifice tip
• the single piece wide angle deflector nozzle (Type F), has a wide low impact flat spray pattern

Special purpose flat sprays:

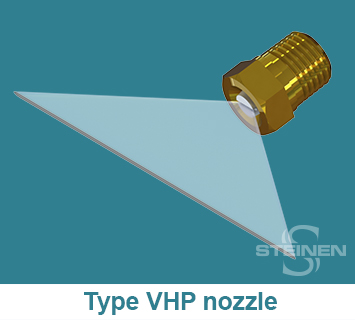

• the low capacity/high pressure nozzle (Type VHP), designed to give long life at high pressure spraying
• the precision flow “wrench flats” flat spray (Type 579) designed for easy spray alignment
